Product Description
welded parts, screw up, for fixed a variety of ground and pole buildings, road signs.

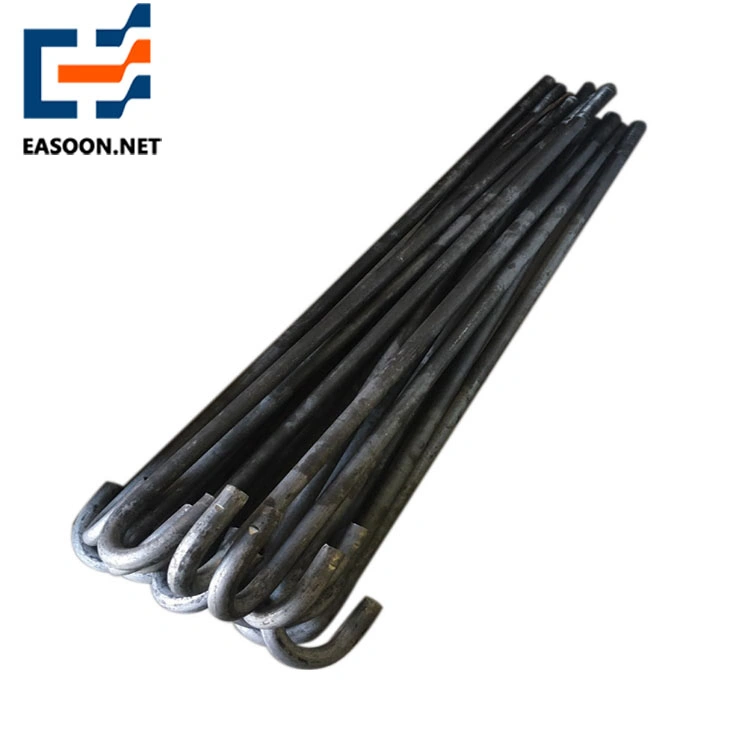

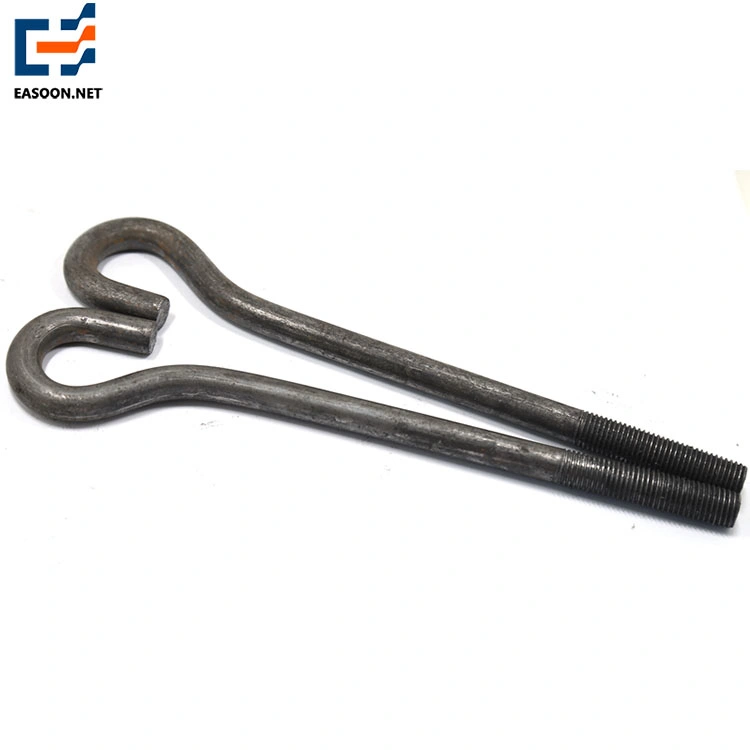

| Product | Anchor bolts; Foundation bolts; L type bolts; J type bolts; U bolts |
| Size (Metric) | M6~M48 |
| Size (Inch) | 1/4~2 |
| Length (mm) | 200~6000 |
| Grade (Metric) | 4.8; 5.6; 6.8; 8.8; 9.8; 10.9; 12.9 |
| Grade (Inch) | grade2; grade5; grade8 |
| Material | Q235; AQ345B; 16Mn; 45#; 40Cr etc |
| Surface | Black; Galvanized |
Product Specification
| d Specification | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | |
| b (Thread length) | max | 27 | 31 | 36 | 40 | 50 | 58 | 68 | 80 | 94 | 106 | 118 |
| min | 24 | 28 | 32 | 36 | 44 | 52 | 60 | 72 | 84 | 96 | 108 | |
| d1 | 10 | 10 | 15 | 20 | 20 | 30 | 30 | 45 | 60 | 60 | 70 | |
| L1 | L+37 | L+37 | L+53 | L+72 | L+72 | L+110 | L+110 | L+165 | L+217 | L+217 | L+225 | |
Product Type
Product Weight
| Dia | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 |
| Length | KG/1000PCS | ||||||||||
| 80 | 20.06 | ||||||||||
| 120 | 26.92 | 48.83 | |||||||||
| 160 | 33.77 | 61.27 | 104.6 | 165.3 | |||||||
| 220 | 79.93 | 134.1 | 208 | 382.1 | |||||||
| 300 | 173.4 | 265 | 486.8 | 839.6 | 1209 | ||||||
| 400 | 336.3 | 617.6 | 1044 | 1504 | 2639 | ||||||
| 500 | 748.5 | 1249 | 1799 | 3106 | 4863 | ||||||
| 630 | 1454 | 2094 | 3573 | 5542 | 7590 | 10422 | |||||
| 800 | 2684 | 4507 | 6898 | 9449 | 12860 | ||||||
| 1000 | 5441 | 8255 | 11307 | 15297 | |||||||
| 1250 | 13629 | 18345 | |||||||||
| 1500 | 21392 | ||||||||||
Production Workshop
Production Equipments
Quality Control
Trading Information
| Payment | T/T, Western Union L/C. |
| Delivery time | Within 7-12 days after 30% deposit. |
| Service | Extra project consultancy & fabrication service. |
Package & Loading
FAQ
A: 1 pc.
Q: Can I get a sample?
A: Yes we offer free samples. Delivery cost is to be paid by clients.
Q: What is delivery time?
A: 5 days after deposit. Except for public holidays.
Q: How can you guarantee the quality?
A: We have rigorous quality test system, from raw materials to finished products, the materials must be checked
and signed by QC people.
Q: How long can I get a quote?
A: The quotation can be provided not longer than 24 hours on condition that we know all detailed requirements.
Q: Can you provide OEM service?
A: Yes,we can produce under your own brandname. Logo and design need to be provided so as to make
customized brandname.
