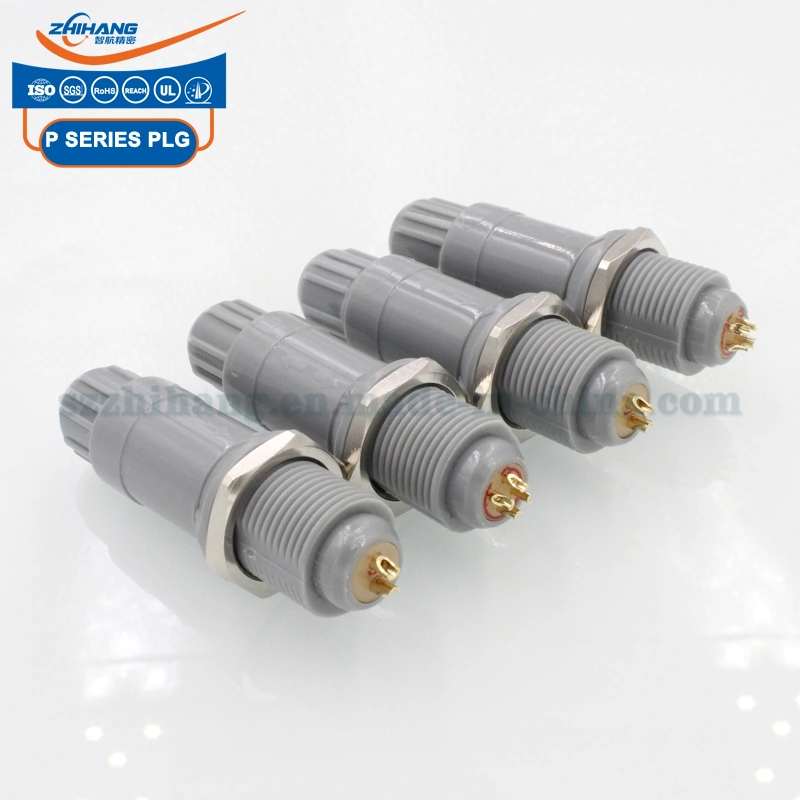

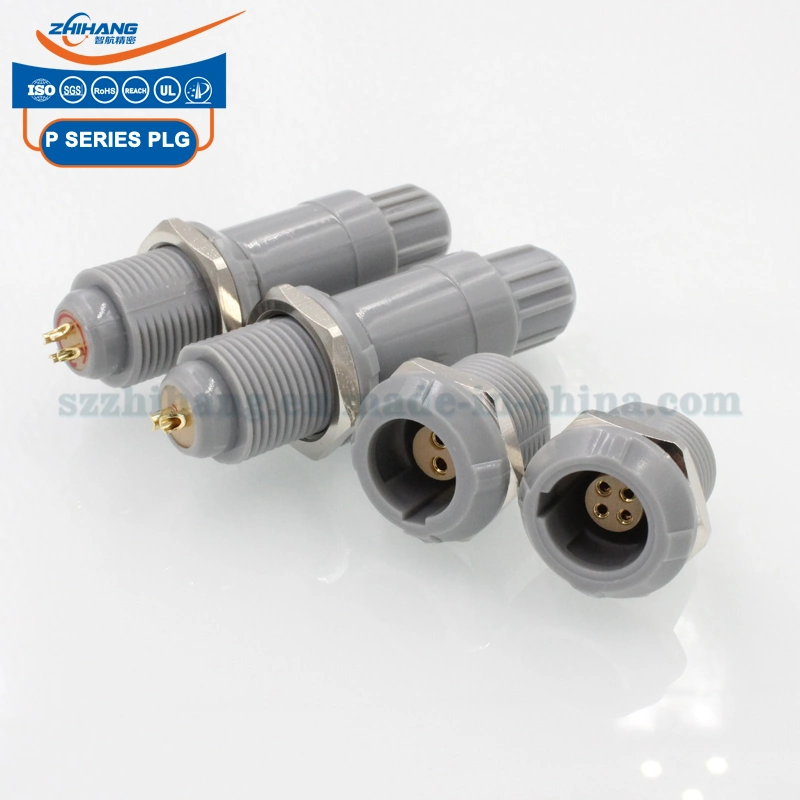

Product Name: 1P series socket with one nut (back panel mounting)
1P series one nut fixed socket M14 standard medical plug socket, the product adopts plastic shell, the head seat connection adopts direct push-pull type quick connection locking, widely used in medical harness, monitor, blood oxygen probe and medical wire.
Product parameters:
Shell material: PE.
Needle contact material: Gold plating of copper rod.
Rubber contact material: PPS.
Optional contacts: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14.
Wiring mode: solder.
Product color: orange, green, yellow, blue, black, red, gray, white.
Key control (degree optional): 0°key(G), 40°key(A), 60°key(B), 80°key(C).
Positioning device: multi key anti misinsertion (G is standard positioning pin, used for connector alignment).
It is mainly used in ventilator, intoxication machine, multi parameter monitor, temperature and humidity recorder, steel bar detector, balance car, ozone instrument, radio frequency neuralgia treatment instrument, radio frequency temperature control thermal coagulator, postpartum rehabilitation treatment instrument and other equipment.
Widely used in communication, electronics, detection and measurement, mechanical equipment, subway, UAV, medical equipment, ships, military industry, photographic equipment, instruments and other industries.
| Specification | |
| Connecting mode | Push-pull self-locking |
| Protection level | IP50 |
| Cable specification | 0.08-0.5mm2 /28-20AWG |
| Diameter range | Φ4mm ~Φ6mm |
| Contact diameter×Qty | Φ0.5~Φ1.3 |
| Current rating(A) | 2A~10A |
| Operating voltage(AC.V.rms) | 500V~1300V |
| Durability | ≥1000 mating&unmating cycles |
| Temperature rating | |
| Method of connecting cable | Solder |
| Material | |
| Shell | Plastic |
| insulated parts | PPS |
| Contact pin | Copper alloy(gold-plated) |
| Main characteristics | |
| - Vibration resistance,impact resistance,stretching resistance | |
| Application industries | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
ZHIHANG is a manufactuer that:
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Series has B, P, K, S, F, T, W, V, E, JHR10,etc.
• ISO90001:2015, ROHS, REACH,SGS Audited manufacturer, UL.
• All the items can work normally after 5000 times mating.
