Product Description
Our product is a new type of self-climbing scaffolding that is very suitable for high-rise buildings wall structures. The main components include Steel Safety Screen, Elevation Mechanism, Horizontal Support, Wall Bracket, Computerized Control System.
The standard height of this frame is 13.5 meter as protective shield. There are 7 layers of scaffolding boards. Of course, it can be also customized for various requirements of different project.
Requires only one-time installation and lifting. Dismantle is not required before construction completed. At the same time it can help you to save cost and time, and reusable for 10-13 years if well maintained.
Save cost, safety, fast and reusable are competitive edge, All items with SGS, ISO approved and all obtained the Utility Model Patent Certificate issued by the SIPO in China.
We provide customized accessories for Self-Climbing Scaffolding/ Frame/ Formwork. Contact with Jasic Zheng for more details.
Product Name: | Intelligent full steel modular attached type lifting scaffold | Rate power of hoist: | 500W |
Specification: | customized | Rate load of hoist: | 7.5T |
Color: | Different color available | Horizontal Cantilever plate length: | ≤2m, and no more than 1/2 span |
Certification: | ISO9001, SGS | Frame full height * support span: | ≤110 Sqm |
Distance from wall: | 30cm | Lifting Speed: | 12cm/Min |
Climbing Scaffolding Unit Height: | ≤15m(no more than 5 floors) | Anti-falling breaking distance: | ≤ 80m |
Climbing Scaffolding Unit Width: | 0.7m | Screen windshield coefficient: | 0.42 |
Linear(Horizontal)span: | ≤7m | Working load: | ≤ 2.0KN/Sqm, 3 floors & ≤ 3.0KN/Sqm, 2 floors |
Broken line or curve span: | ≤5.4m | ||
Synchronization error of adjacent positions: | ≤ 30mm | Lifting load: | ≤ 0.5KN/Sqm, 2 floors |

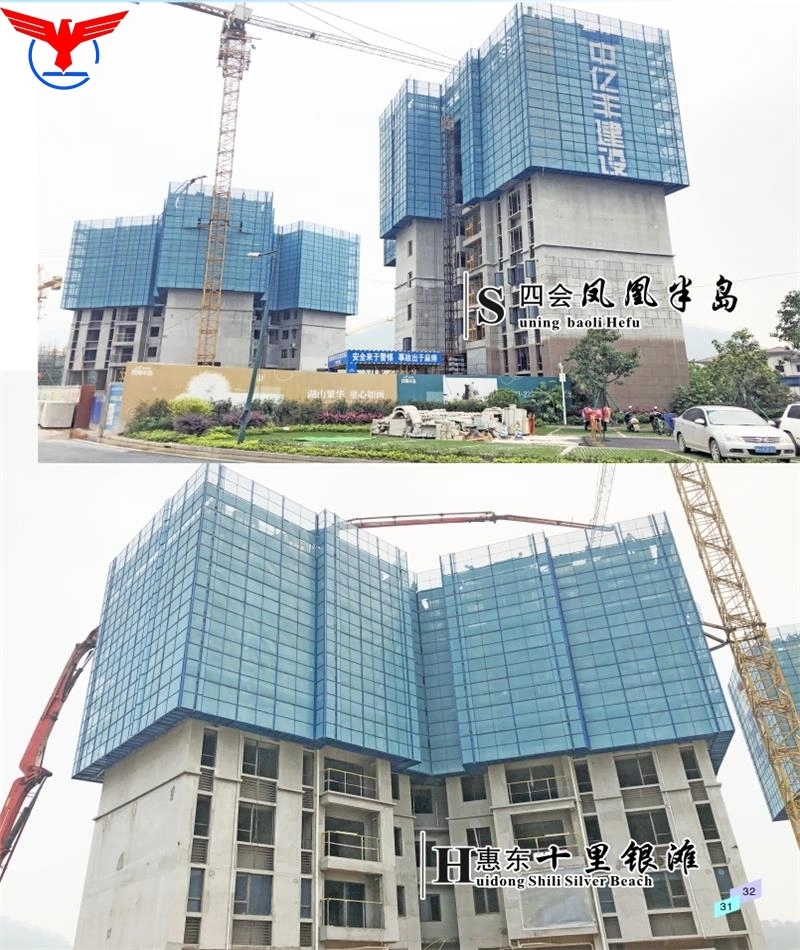

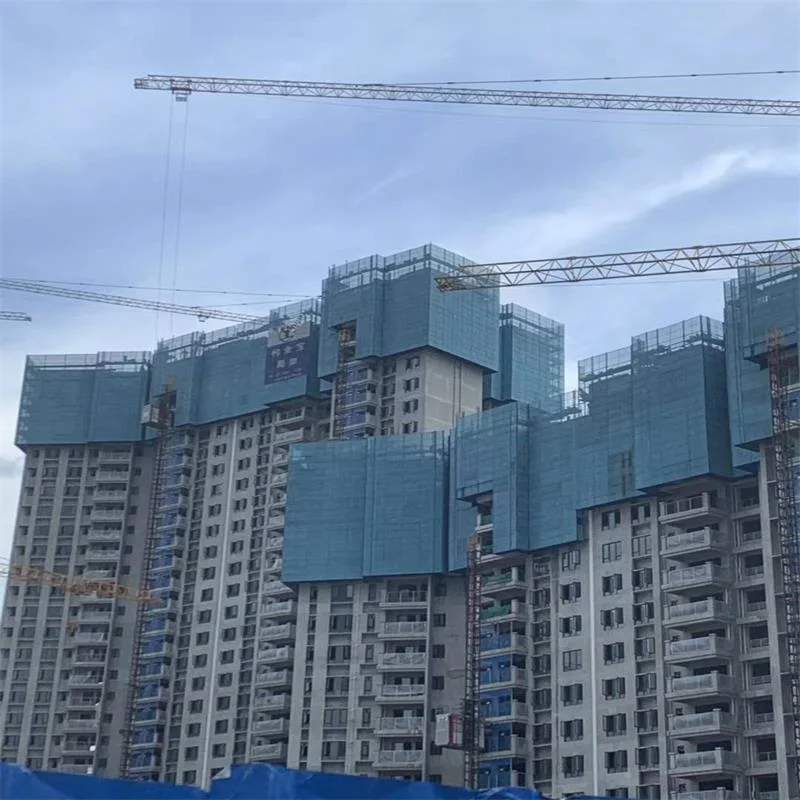

Project Case
Our Factory
Foshan Gouyebao formwork construction co., ltd is a professional manufacturer in the production of climbing frame, climbing mold with more than 8 years experience.
Our factory is located in Tingbu Village, Genghe Town, Gaoming District, Foshan City, Guangdong. We have specialized production equipment, such as the guide rail H welding, CNC series cutting machine, guide rail correction machine, sandblasting machine, and other latest professional machine. Our annual production capacity is more than 100000 Tons.
Our products including self-climbing scaffolding, climbing formwork, H frame scaffolding, steel scaffolding modular, intelligent scaffolding accessories, steel structure frame, hydraulic climbing system, suspended platforms and the professional customized service of construction project.
We are a leading professional manufacturer of this type of climbing scaffolding for several years. Don't worry about all services, such as security, operation technique training, design of scaffolding, after-sale service, etc.
Our Advantages
1. Independent research, development, manufacturing and processing, excellent quality, controllable schedule, top-ranking service
2. Wind resistance of punching net is increased by 90%, 0.42 is nearly half of the traditional wind shield coefficient of 0.8
3. Modular structure of the climbing frame is easy to install and remove
4. On-site bolted installation reduces large area cutting and welding, saving material
5. Automatic lifting saves time and manpower, avoiding repeated setting
6. Hoister adopts standard cable, simple operation, strong water and fire resistance
7. Upside down setting of Hoister facilitates the smooth walking on all layers of scaffolding
8. Wall-mounted device enhances the stability of scaffolding with good anti-fall and anti-tilt performance
9. Control system is designed with overloading auto alarm and stop functions
Product Details
Test & Certifications
Packing & Shipment
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: The delivery time is within 5-45 days after received the deposit, please contact us for more details.
Q: What is your terms of payment?
A: 30% T/T in advance + 70% balance before shipment, or LC at sight.
Q: Is your product only sold as a whole?
A: No, we also sell it in parts.
Q: What is your main market?
A: Our main markets are Domestic Market,Middle East, SouthEast Asia, Africa, European etc.
Q: What is your MOQ?
A: 1 Set per time if out of stock. There is nothing requirment for our stock available.
Q: Can you provide special customized solution for us?
A: Sure, customized service is available, that is one of our business. Please let us know your idea.
Q: Can we visit your factory?
A: Sure,feel free to contact us before your visit.The address is No.576, Gongye Ave, Tingbu Village, Genghe Town, Gaoming District, Foshan city, Guangdong, China.
If you have any another questions, please feel free to contact Jasic.
